Line-Air 5.8 MK II pair for DJI GOGGLES 2

Description

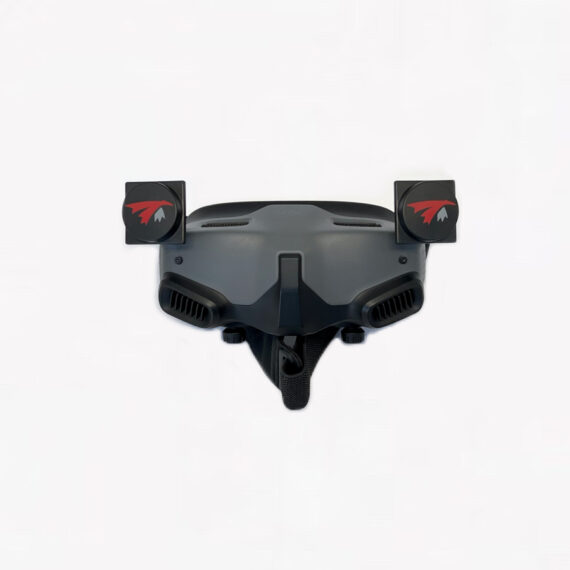

The Line-Air 5.8 MK II are the same format as the popular X-air but in linear polarized flavor for the DJI goggles 2. The pair is cross-polarized (+/-45deg) to ensure good polarization diversity. Simply pull out the stock antennas and push the Line-Air in. Their matching interfaces fit the DJI goggles 2 as if they where from factory. These provide excellent match for O3 stock antenna or when using linear antenna(s) on the any air unit.

Specs

• Bandwidth: 5.5GHz-6.7GHz
• Gain: 9-10 dBic
• Polarization: Linear (+/- 45deg slanted)
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg.
• Connector: MCX male
• Dimension: 34 x 34 x 24mm
• Weight: x.xg


*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes:

• Two Line-Air 5.8 for DJI goggles 2 (one for left and one for right side)
