X²-AIR 5.8 MK II pair for DJI GOGGLES 2

Description

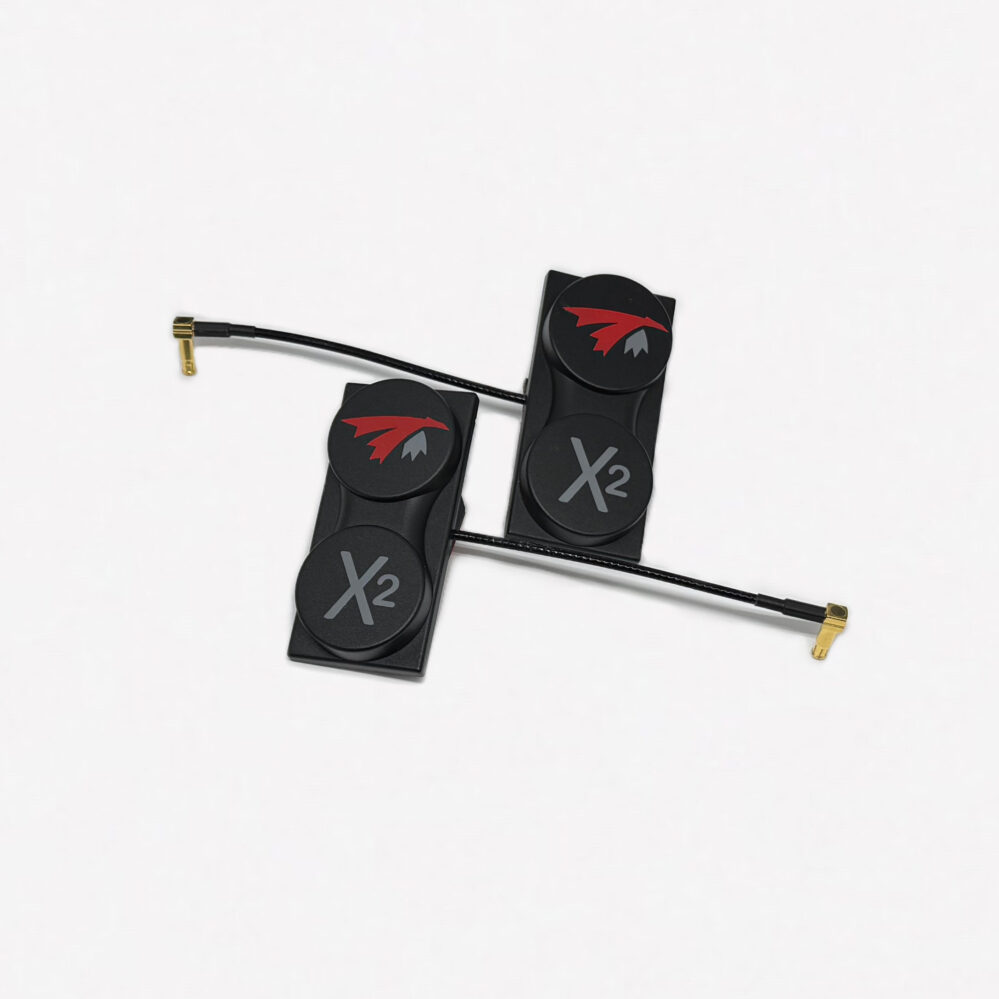

A pair of X²-air that stick right on the DJI goggles 2 for massive range boost. Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions.  Simply peel the included adhesive, stick them on and connect the custom MCX in place of the stock antennas.



Features

• Circularly Polarized
• Sector type beam shape (widest on horizontal)
• Mount direct on DJI googles 2’s face with included adhesive backing
• Compact low-profile design on your goggles, easy to store and transport
• High 13 dBic for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 150 degree beam for each antenna combining to 180deg beam width
• Custom MCX connectors

Specs

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 13 dBic
• Polarization: LHCP or RHCP
• Beam-width Horizontal*: 150deg
• Beam-width Vertical*: 62deg
• Hor. beam @-3dB**: 75deg.
• Vert. beam @-3dB**: 34deg.
• Connector: Custom MCX 90deg.
• Dimension: 72mm x 34mm x 15mm
• Weight: 20g each
• Include adhesive mount for installation onto DJI FPV goggles.

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

Includes:

• Two X²-air for DJI goggles 2 (one for left and one for right side)
