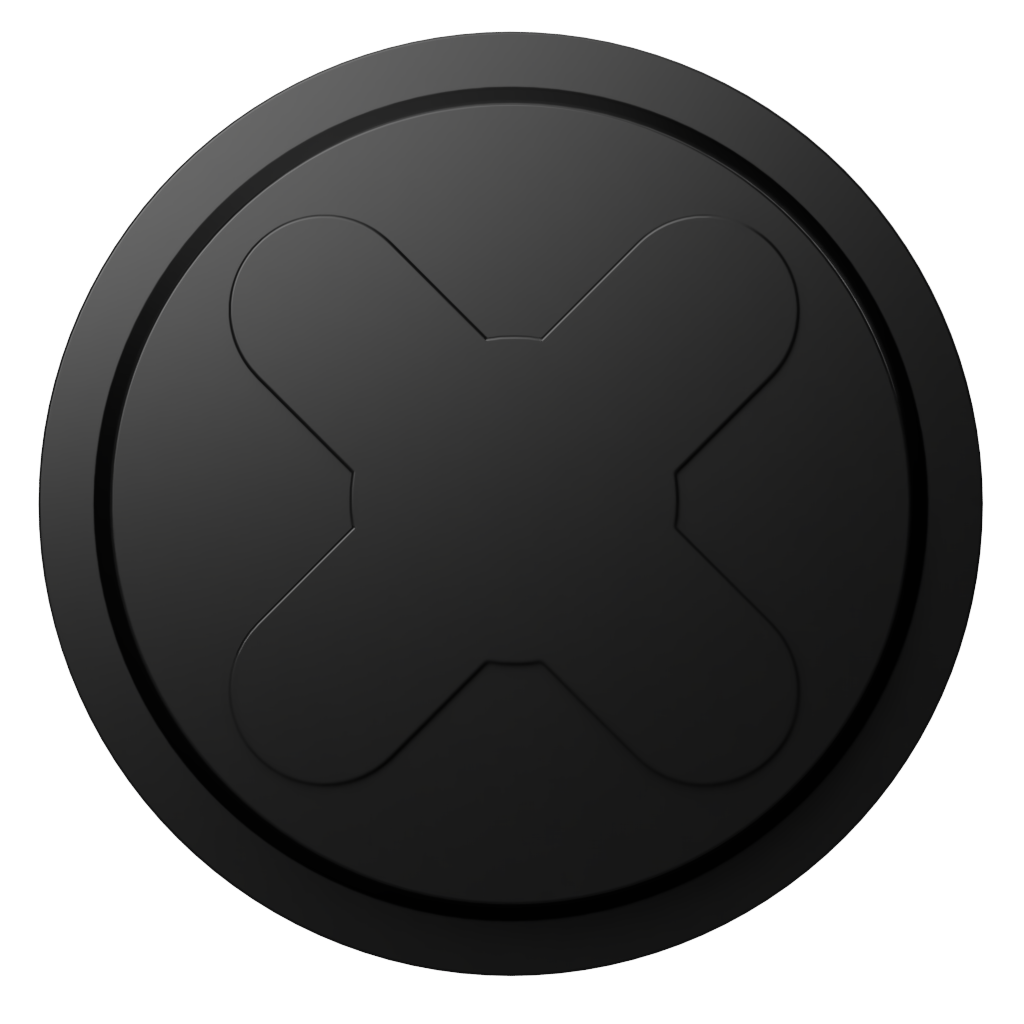

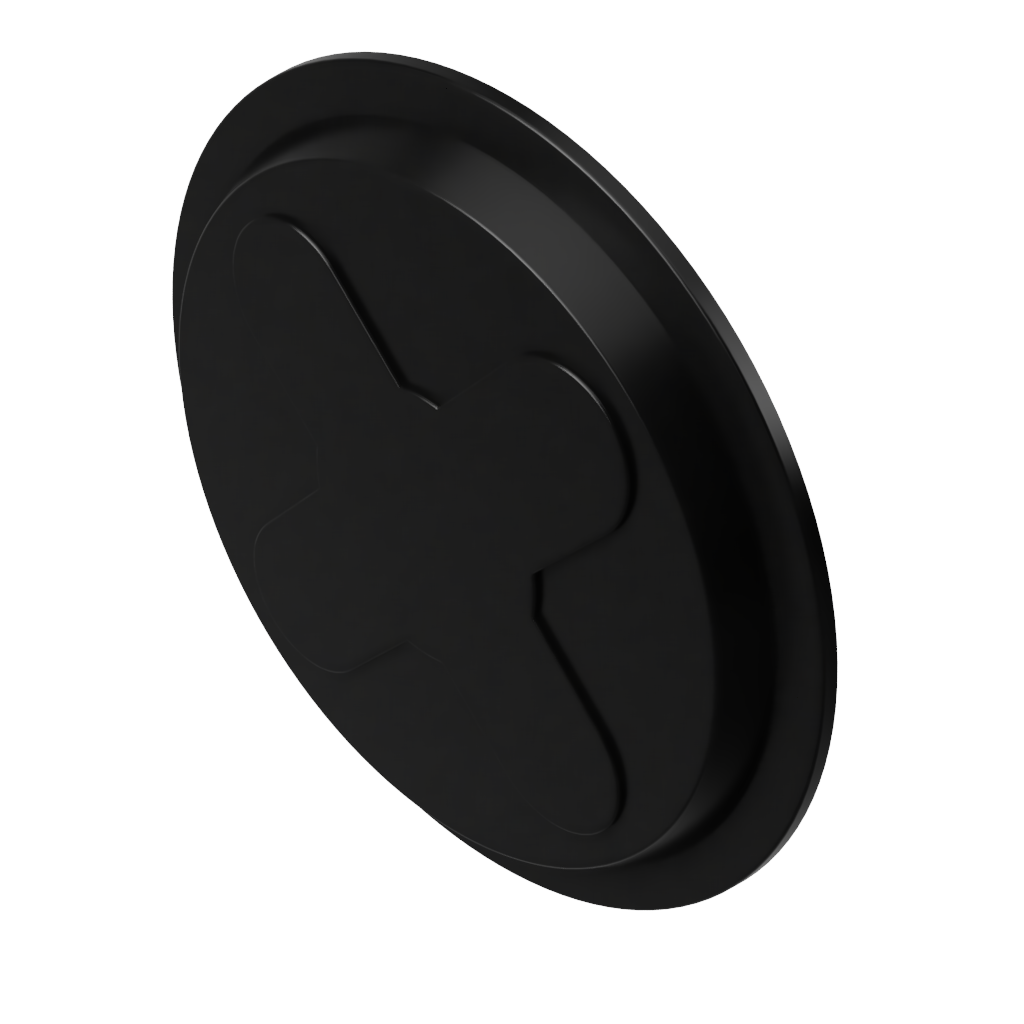

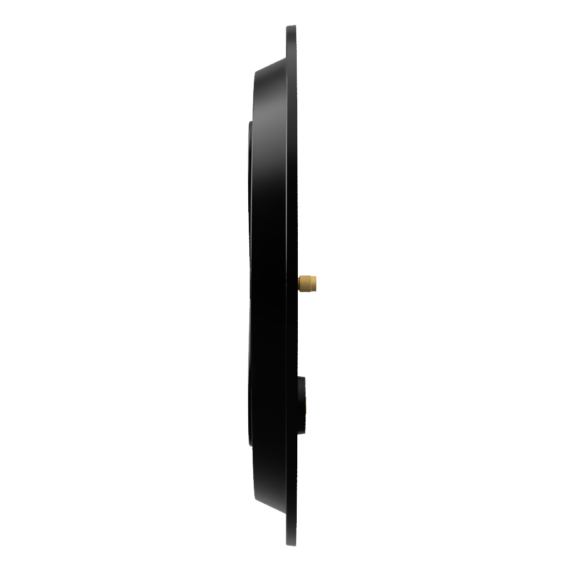

X-RAY 3.3

Description

The X-RAY 3.3 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency. Achieving up to 17dBic over a single element in a simple clean and thin format, the X-RAY is the physical expression of TrueRC’s design philosophy.



Features

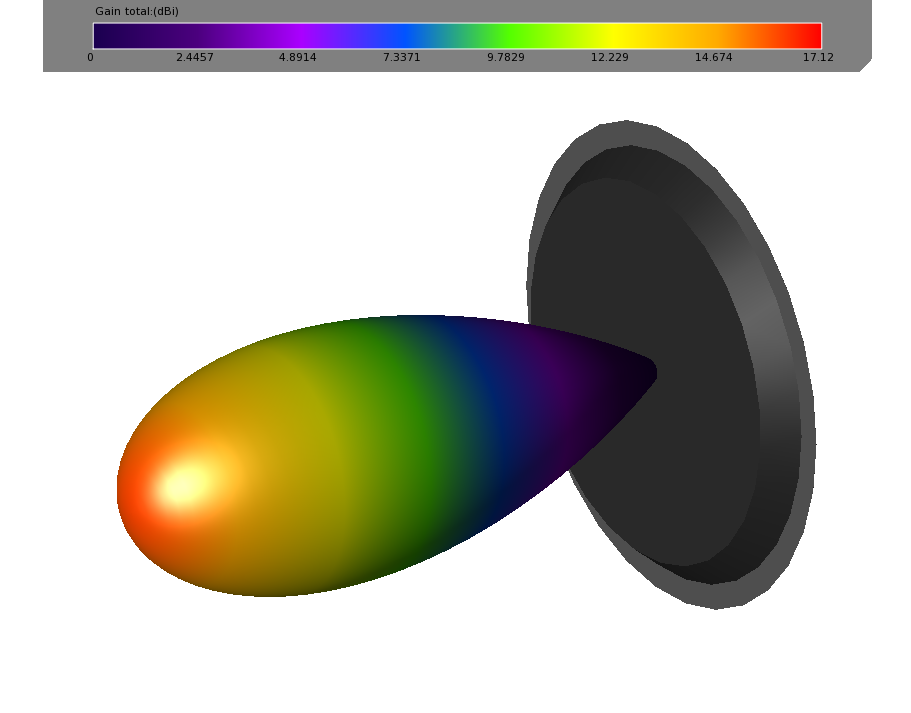

• Very low side lobes and excellent front to back ratio.
• Excellent axial ratio and efficiency over a large bandwidth



Specs

• Frequency: 3.2-3.5GHz ‘
• Gain: 16-17 dBic
• Polarization: RHCP or LHCP
• Beam-width*: 60deg
• Beam-width @-3dB**: 25deg.
• Connector: SMA

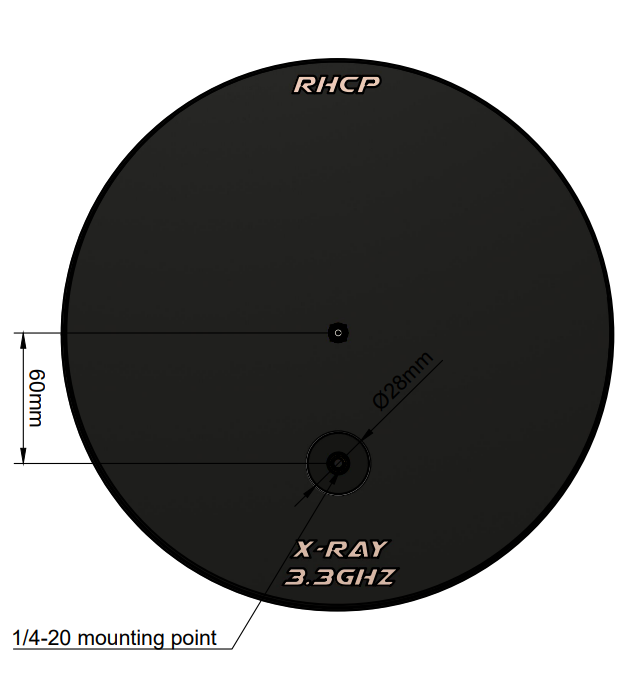

• Dimensions: 282mm dia. x 35mm
• Weight: 300g



*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
